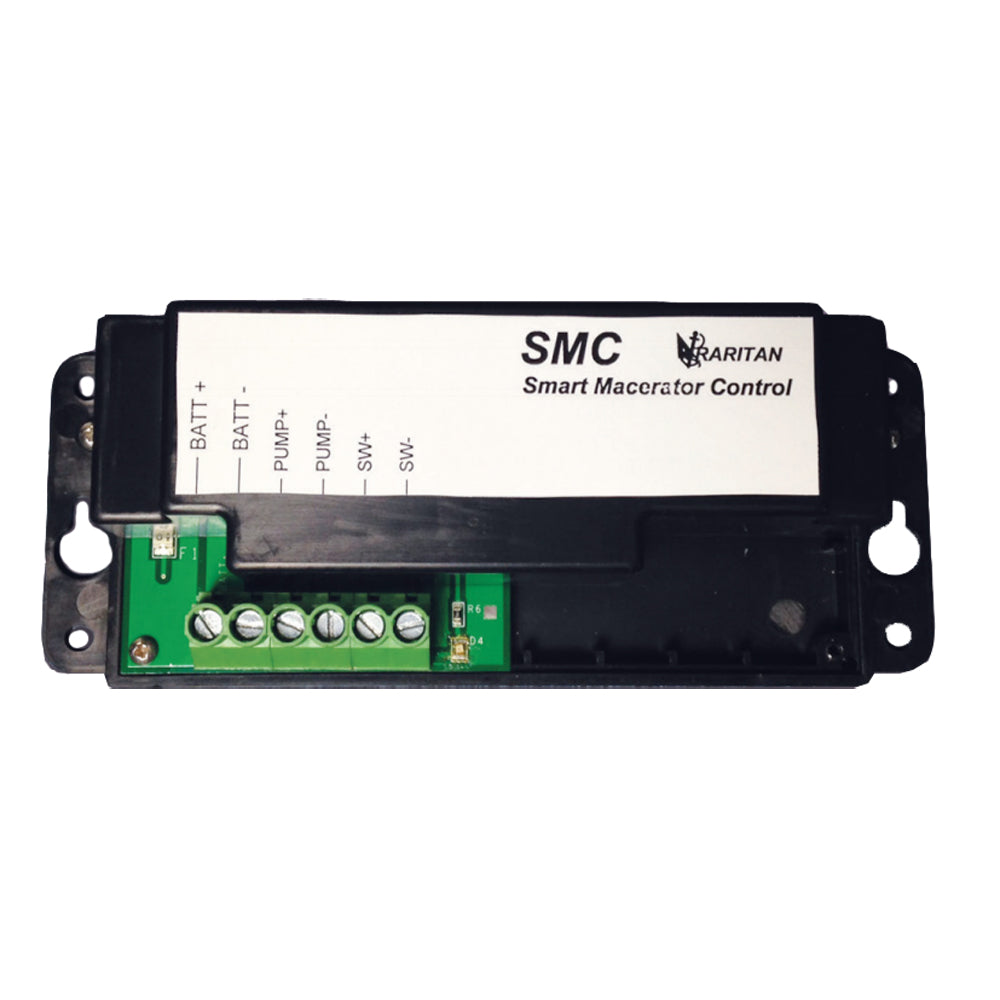

Raritan Smart Macerator Control - 24v [SMC24]

Smart Macerator Control - 24v

Monitors motor and pump to prevent dry run and overload.

Features:

• If pump doesn't prime in 7 seconds or runs dry for 5 seconds, control will shut down pump
• SMC control can be reset by turning off and on switch - power need not be turned off
• If power is not turned off to the control, control will job macerator pump for a few milliseconds every seven days to prevent binding of impeller
• If pump draws more than 20 amps, control will shut down pump

Specifications:

• Volts: 24v
• Type: Misc
• Box Dimensions: 2"H x 6"W x 8"L WT: 0.5 lbs
• UPC: 085462035623
