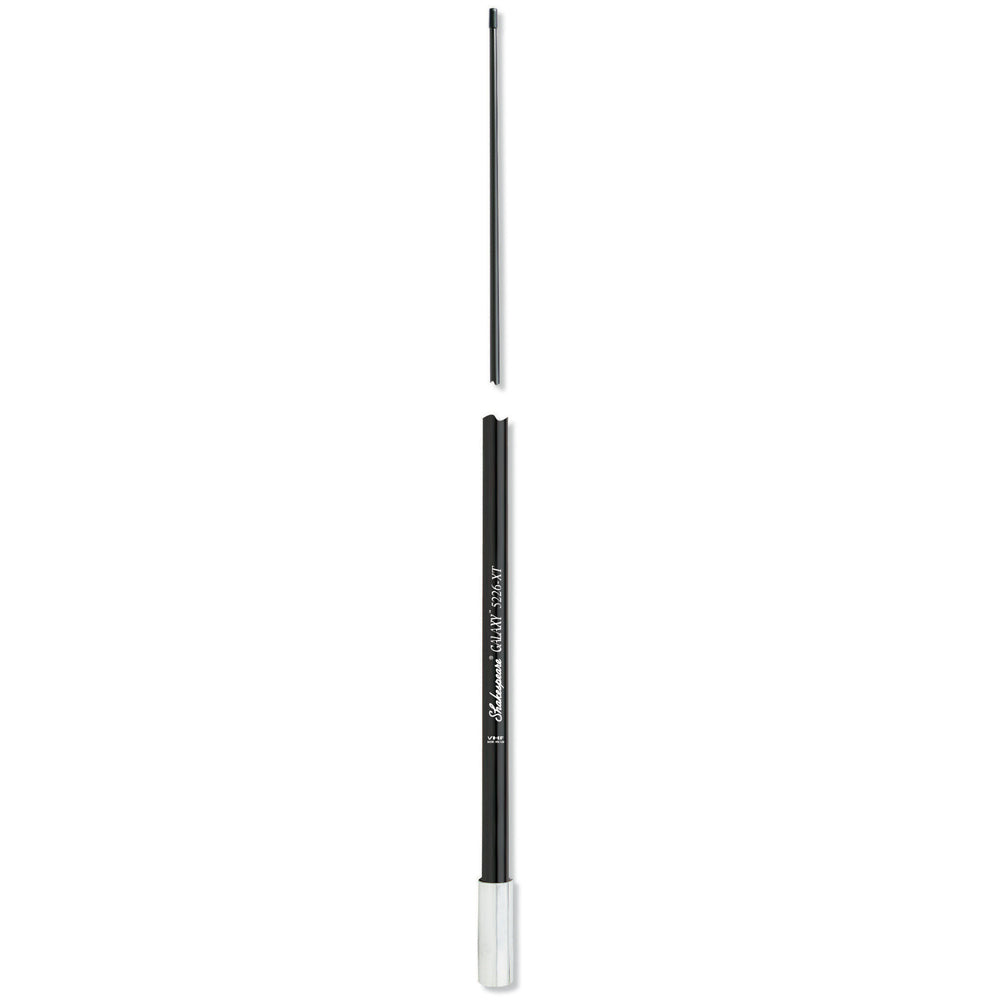

Shakespeare 5226-XT 8' Black VHF Antenna [5226-XT]

by Shakespeare









      Save 4%







      Original Price

        $219.99





        Current Price


        $210.99






Shakespeare Galaxy Style 5226-XT - Reduced Length
8' VHF 6dB Gain
Collinear-phased 5/8 wave elements
EXTRA TOUGH!
This antenna is the same as Style 5225-XT( Reduced length version)  but with the exclusive Galaxy gloss black finish.  It's Shakespeares best  maximum range and quality in a great looking Galaxy antenna.  The new 5225-XT is Shakespeares classic Style 5225 in a new, stronger, stiffer radome.  Its extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.
- Brass and copper elements for maximum range and efficiency
 - Stainless steel ferrule with standard 1"-14 thread
 - 20' RG-8/X low-loss cable plus a PL-259 connector
 - Suggested mount:  Shakespeare Style 4187 Ratchet Mount
 - One section
 - Shakespeare Limited Warranty: 5 years

Technical Specifications:
| Frequency: | VHF Marine Band |
| Bandwidth: | 3 MHz within 2.0:1 VSWR |
| SWR: | nominally 1.5:1 at 156.8 MHz |
| Impedance: | 50 ohms |
| Gain: | 6 dB |
| Max Input (Watts): | 100 watts |
| DC Ground: | YES |
| Height (feet): | 8 |
| Polarization: | Vertical |
Specifications:
- Antenna Band: VHF
 - Color: Black
 - Construction: Fiberglass
 - Ferrule Type: Stainless Steel
 - Length (Inches): 96"
 - Box Dimensions: 3"H x 3"W x 95"L WT: 2.4 lbs
 - UPC: 719441200237
