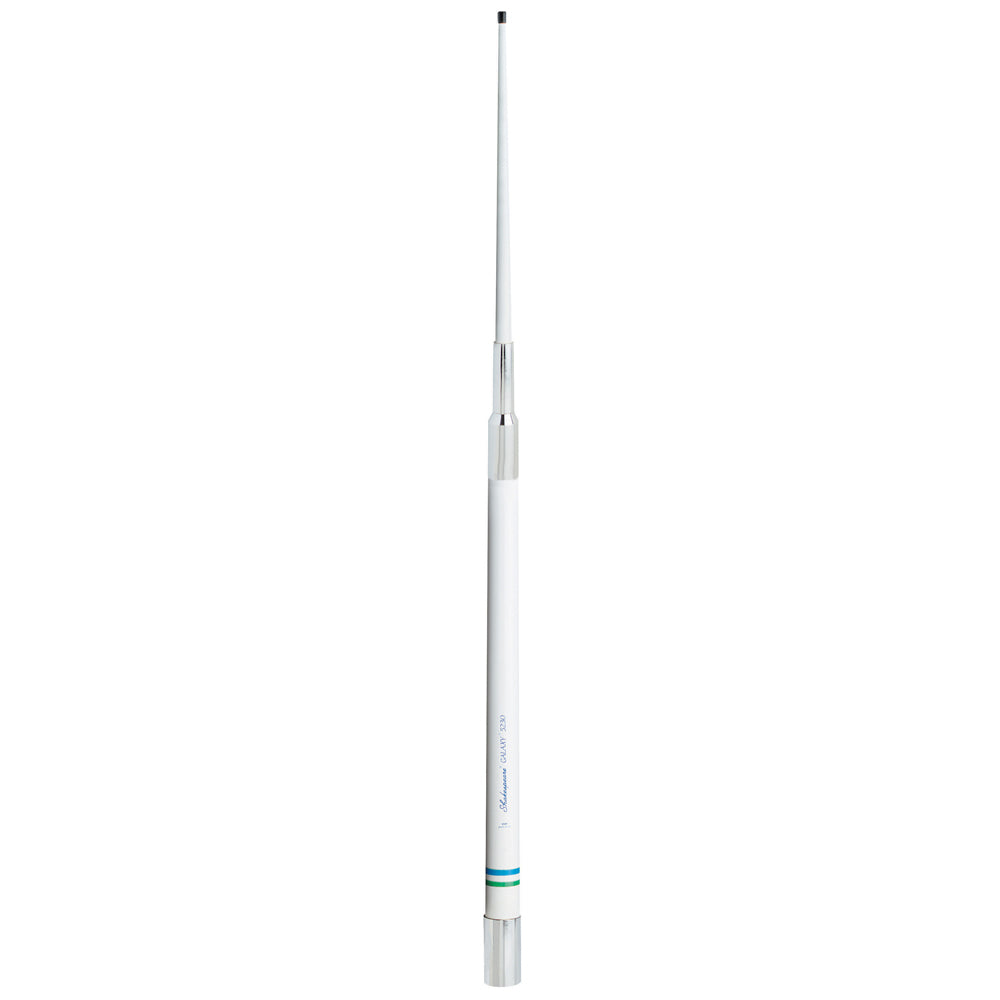

Shakespeare 5230 14' VHF Antenna [5230]
by Shakespeare
Save 9%
Original Price
$599.99
Current Price
$544.99
Shakespeare Galaxy 5230
14' VHF 8dB Gain
5/8 wave over 1/2 wave dipole
The ultra-performer, Shakespeares Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.
- Brass and copper elements for maximum range and efficiency
- Stainless steel ferrule with standard 1"-14 thread
- Includes 20 feet of RG-8/X cable and a PL-259 connector
- Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit
- Two sections: Base 94", Tip 74" -
- Shakespeare Limited Warranty: 5 years
Technical Specifications:
| Frequency: | VHF Marine Band |
| Bandwidth: | 3 MHz within 2.0:1 VSWR |
| SWR: | nominally 1.5:1 at 156.8 MHz |
| Impedance: | 50 ohms |
| Gain: | 8 dB |
| Max Input (Watts): | 200 watts |
| DC Ground: | YES |
| Height (feet): | 14 |
| Polarization: | Vertical |
Specifications:
- Antenna Band: VHF
- Color: White
- Construction: Fiberglass
- Ferrule Type: Stainless Steel
- Length (Inches): 168"
- Box Dimensions: 3"H x 3"W x 95"L WT: 11 lbs
- UPC: 719441200084
Quick Guide (pdf)
